Straight Spline Gauges
Leading Manufacturers, Exporters and Wholesaler of Industrial Straight Spline Nogo Plug Gauge, Straight Spline Finish Go Plug Gauge, Straight Spline Go Inspection Plug Gauge, Straight Spline Go Type Plug Gauge, Straight Spline Go Type Ring Gauge, Straight Spline Hard Go Ring Gauge and Straight Spline Hard Nogo Ring Gauge from Aurangabad.
| Business Type | Manufacturer, Exporter, Supplier |

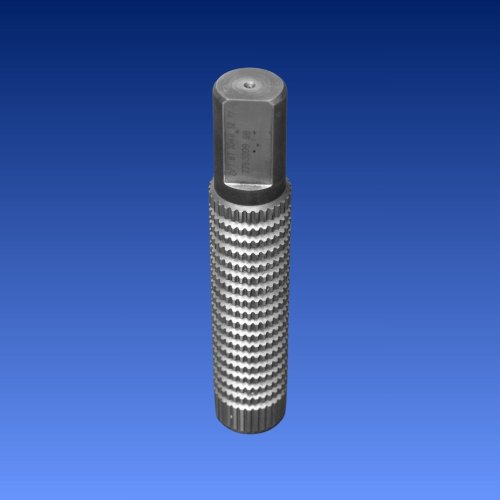

| Type | Straight Spline Plug Gauge (NOGO Type) |
| Material | High Quality Alloy Tool Steel |
| Application | Internal Spline Bore Inspection,NOGO Gauge For Rejection Limit Checking |
| Accuracy Grade | Inspection Grade (Class AA / A) |
| Standard | DIN 5480 / ISO 4156 |
| Surface Finish | Precision Ground & Super Finished Teeth |
| Hardness | 58-62 HRC |
| Size Range | 10 Mm To 250 Mm (or As Per Drawing) |
| Tolerance | As Per DIN 5480 / ISO 4156 Standards |
| Business Type | Manufacturer, Exporter, Supplier |

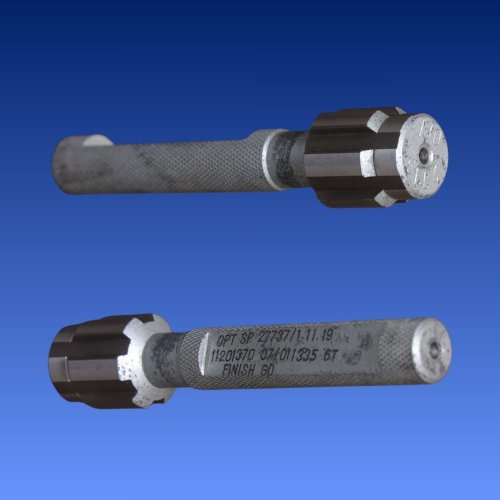

| Type | Finish GO Plug Gauge |
| Material | High Grade Alloy Tool Steel |
| Standard | DIN 5480 / ISO Spline Standards |
| Application | Final Inspection Of Internal Straight Splines,Used For Final GO Checking Of Spline Bore Accuracy |
| Tolerance | As Per Customer Specification |
| Accuracy Grade | Inspection Grade (Class A / AA) |
| Surface Finish | Hardened & Precision Ground |
| Hardness | 58-62 HRC |
| Size Range | As Per Drawing / Custom Sizes Available |
| Business Type | Manufacturer, Exporter, Supplier |

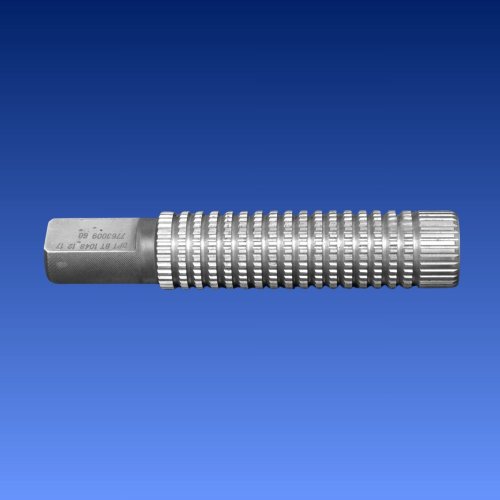

| Type | Straight Spline Plug Gauge (GO Type) |
| Material | High Grade Alloy Tool Steel |
| Standard | DIN 5480 / ISO 4156 |
| Application | Internal Straight Spline Bore Checking,GO Gauge For Pass Fit Inspection |
| Tolerance | As Per DIN 5480 / ISO Standards |
| Accuracy Grade | Inspection Grade (Class AA / A) |
| Surface Finish | Precision Ground & Finished Teeth |
| Hardness | 58-62 HRC |
| Size Range | 10 Mm To 200 Mm (or As Per Drawing) |
| Business Type | Manufacturer, Exporter, Supplier |
| Standard | DIN 5480 / ISO 4156 |
| Application | Internal Spline Bore Inspection,GO Gauge For Pass Fit Verification |
| Tolerance | As Per DIN 5480 / ISO 4156 Standards |
| Type | Straight Spline Plug Gauge (GO Type) |
| Material | High Quality Alloy Tool Steel |
| Accuracy Grade | Inspection Grade (Class AA / A) |
| Surface Finish | Precision Ground & Super Finished Teeth |
| Hardness | 58-62 HRC |
| Size Range | 10 Mm To 250 Mm (or As Per Drawing) |
| Business Type | Manufacturer, Exporter, Supplier |
| Application | Internal Spline Inspection,GO Gauge For Pass Condition Verification |
| Tolerance | As Per DIN 5480 / ISO 4156 Standards |

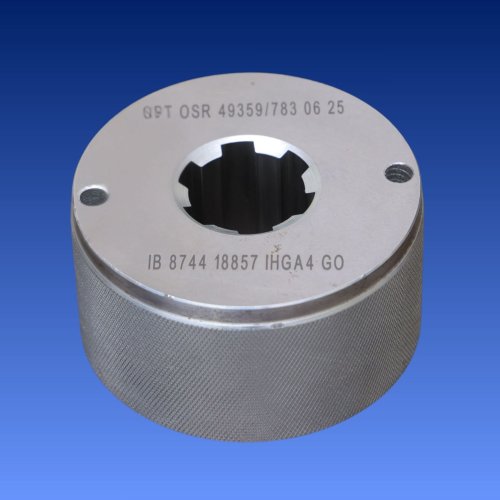

| Type | Straight Spline Ring Gauge (GO Type) |
| Material | High Grade Tool Steel |
| Accuracy Grade | Inspection Grade (Class AA / A) |
| Standard | DIN 5480 / ISO 4156 |
| Surface Finish | Precision Ground & Lapped |
| Hardness | 58-62 HRC |
| Size Range | 10 Mm To 300 Mm (or As Per Drawing) |
| Business Type | Manufacturer, Exporter, Supplier |

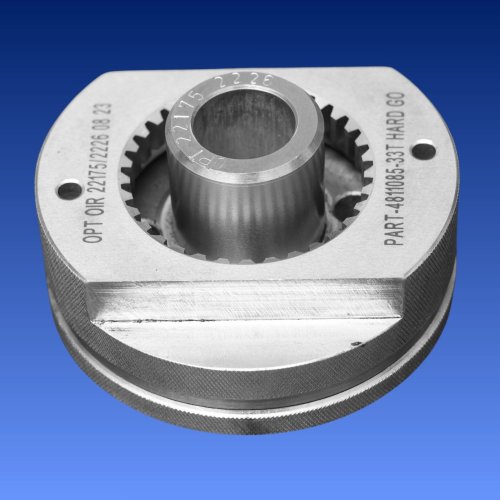

| Type | Straight Spline Ring Gauge (HARD GO Type) |
| Material | High Grade Tool Steel |
| Application | External Spline Shaft Inspection,HARD GO Gauge For Acceptance Limit Checking |
| Tolerance | As Per DIN 5480 / ISO 4156 Standards |
| Accuracy Grade | Inspection Grade (Class AA / A) |
| Standard | DIN 5480 / ISO 4156 |
| Surface Finish | Precision Ground & Lapped |
| Hardness | 62-65 HRC (HARD) |
| Size Range | 10 Mm To 300 Mm (or As Per Drawing) |
| Business Type | Manufacturer, Exporter, Supplier |

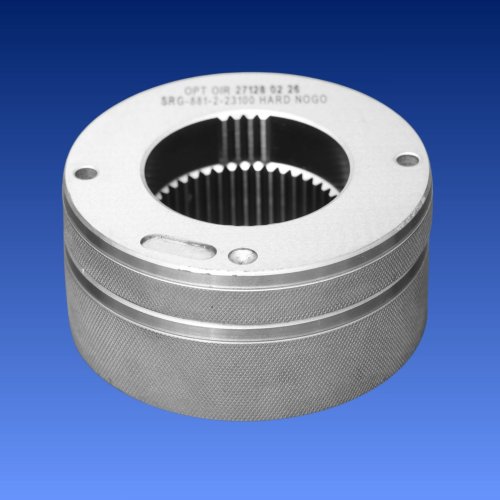

| Type | Straight Spline Ring Gauge (HARD NOGO Type) |
| Material | High Grade Tool Steel |
| Application | External Spline Shaft Inspection,HARD NOGO Gauge For Rejection Limit Checking |
| Tolerance | As Per DIN 5480 / ISO 4156 Standards |
| Accuracy Grade | Inspection Grade (Class AA / A) |
| Standard | DIN 5480 / ISO 4156 |
| Surface Finish | Precision Ground & Lapped |
| Hardness | 62-65 HRC (HARD) |
| Size Range | 10 Mm To 300 Mm (or As Per Drawing) |
