Ring Gauge Sets

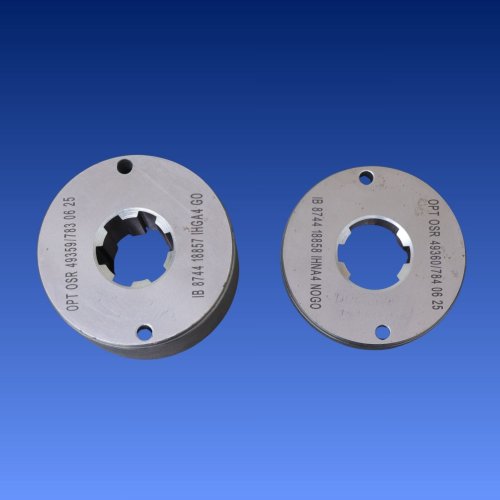

Leading Manufacturers, Exporters and Wholesaler of Industrial Straight Spline Go Nogo Ring Gauge Set, Straight Spline Go & Nogo Ring Gauge Set, Straight Spline Hard Go & Hard Nogo Ring Gauge Set and Straight Spline Plug & Ring Gauge Set from Aurangabad.
| Business Type | Manufacturer, Exporter, Supplier |
| Grade | DIN 5480 / ISO 4156 |
| Application | Internal Spline Shaft Inspection,GO For Acceptance & NOGO For Rejection Limit Checking |
| Type | Straight Spline Ring Gauge (GO & NOGO Set) |
| Material | High Grade Tool Steel |
| Accuracy Grade | Inspection Grade (Class AA / A) |
| Surface Finish | Precision Ground & Lapped |
| Hardness | 58-62 HRC |
| Size Range | 10 Mm To 300 Mm (or As Per Drawing) |
| Tolerance | As Per DIN 5480 / ISO 4156 Standards |
| Business Type | Manufacturer, Exporter, Supplier |
| Surface Finishing | Precision Ground & Lapped |
| Application | External Spline Shaft Inspection,GO Gauge For Acceptance, NOGO For Rejection Limit Checking |

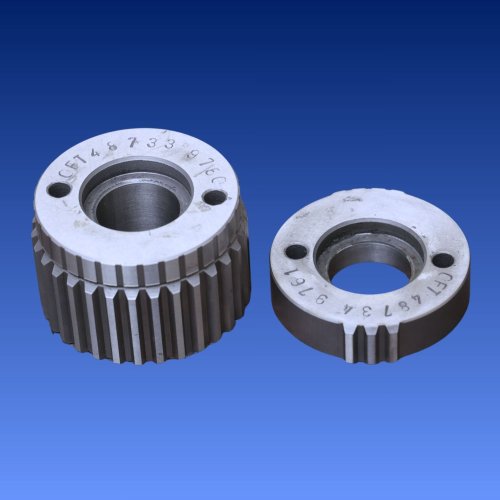

| Type | Straight Spline Ring Gauge (GO & NOGO Set) |
| Material | High Grade Tool Steel |
| Accuracy Grade | Inspection Grade (Class AA / A) |
| Standard | DIN 5480 / ISO 4156 |
| Hardness | 58-62 HRC |
| Size Range | 10 Mm To 300 Mm (or As Per Drawing) |
| Tolerance | As Per DIN 5480 / ISO 4156 Standards |
| Business Type | Manufacturer, Exporter, Supplier |
| Surface Finishing | Precision Ground & Lapped |
| Application | External Spline Shaft Inspection,HARD GO For Acceptance, HARD NOGO For Rejection Limit Checking |

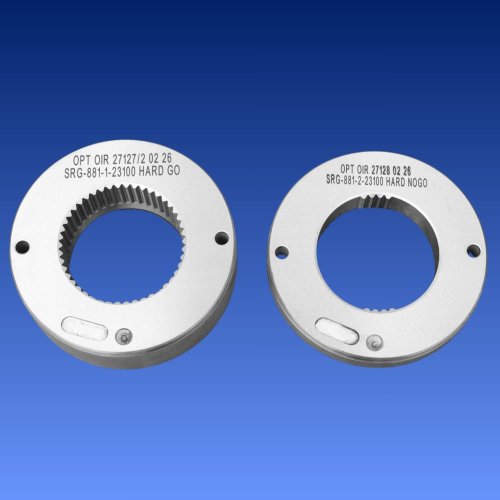

| Type | Straight Spline Ring Gauge (HARD GO & HARD NOGO Set) |
| Material | High Grade Tool Steel |
| Accuracy Grade | Inspection Grade (Class AA / A) |
| Standard | DIN 5480 / ISO 4156 |
| Hardness | 62-65 HRC (HARD) |
| Size Range | 10 Mm To 300 Mm (or As Per Drawing) |
| Tolerance | As Per DIN 5480 / ISO 4156 Standards |
| Business Type | Manufacturer, Exporter, Supplier |
| Application | Internal & External Spline Shaft Inspection,Plug Gauge For Internal Spline Checks, Ring Gauge For External Spline Checks |

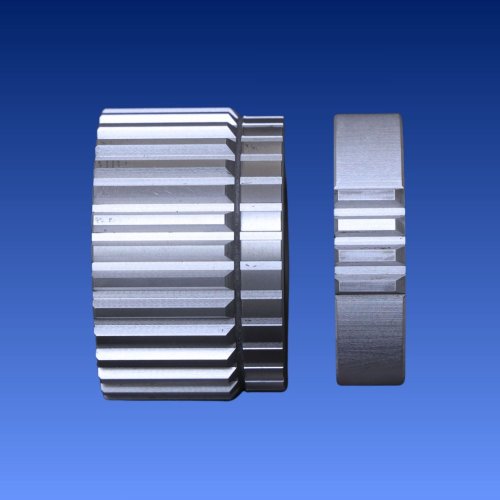

| Type | Straight Spline Plug & Ring Gauge Set |
| Material | High Grade Tool Steel |
| Surface Finishing | Precision Ground & Lapped |
| Accuracy Grade | Inspection Grade (Class AA / A) |
| Standard | DIN 5480 / ISO 4156 |
| Hardness | 58-62 HRC |
| Size Range | 10 Mm To 300 Mm (or As Per Drawing) |
| Tolerance | As Per DIN 5480 / ISO 4156 Standards |
