Involute Spline Gauges
Leading Manufacturers, Exporters and Wholesaler of Industrial Involute Spline Inspection Plug Gauge, Industrial Involute Spline Inspection Ring Gauge, Involute Spline Inspection Ring Gauge and Involute Spline Plug Gauge from Aurangabad.
| Business Type | Manufacturer, Exporter, Supplier |

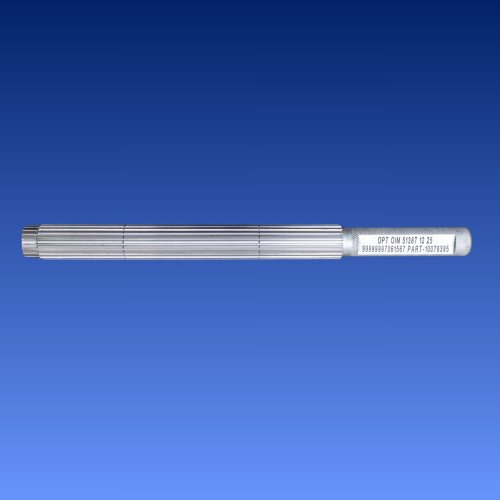

| Type | Involute Spline Plug Gauge |
| Material | High Grade Alloy Tool Steel |
| Application | Internal Involute Spline Bore Inspection,Used For Accurate Spline Fit & Profile Verification |
| Accuracy Grade | Inspection Grade (Class AA / A) |
| Standard | DIN 5480 / ISO 4156 / ANSI B92.1 |
| Surface Finish | Precision Ground & Profile Finished |
| Hardness | 58-62 HRC |
| Size Range | 10 Mm To 250 Mm (or As Per Drawing) |
| Tolerance | As Per DIN / ISO Spline Standards |
| Business Type | Manufacturer, Exporter, Supplier |
| Application | External Involute Spline Shaft Inspection,Used For Spline Profile & Dimensional Verification |

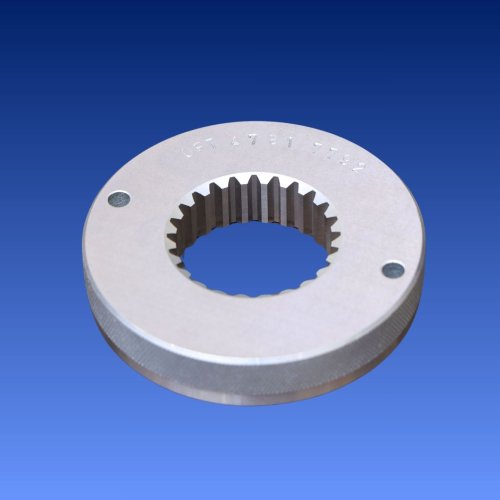

| Type | Involute Spline Ring Gauge |
| Material | High Grade Tool Steel |
| Accuracy Grade | Inspection Grade (Class AA / A) |
| Standard | DIN 5480 / ISO 4156 / ANSI B92.1 |
| Surface Finish | Precision Ground & Lapped |
| Hardness | 58-62 HRC |
| Size Range | 10 Mm To 300 Mm (or As Per Drawing) |
| Tolerance | As Per DIN / ISO Spline Standards |
| Business Type | Manufacturer, Exporter, Supplier |
| Material | High Grade Tool Steel |
| Application | External Involute Spline Shaft Inspection,Used For Spline Profile & Dimensional Verification |
| Tolerance | As Per DIN / ISO Spline Standards |

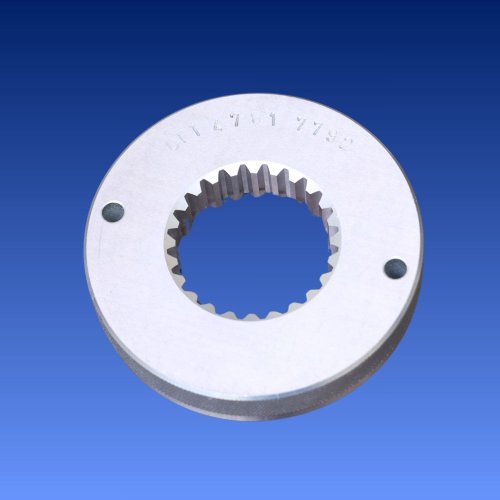

| Type | Involute Spline Ring Gauge |
| Accuracy Grade | Inspection Grade (Class AA / A) |
| Standard | DIN 5480 / ISO 4156 / ANSI B92.1 |
| Surface Finish | Precision Ground & Lapped |
| Hardness | 58-62 HRC |
| Size Range | 10 Mm To 300 Mm (or As Per Drawing) |
| Business Type | Manufacturer, Exporter, Supplier |
| Tolerance | As Per DIN 5480 / ISO Spline Standards |
| Type | Involute Spline Plug Gauge (Spline Tester) |
| Material | High Grade Alloy Tool Steel |
| Standard | DIN 5480 / ISO 4156 / ANSI B92.1 |
| Application | Internal Involute Spline Inspection & Testing,Used For Spline Profile Verification & Fit Testing |
| Accuracy Grade | Inspection Grade (Class AA / A) |
| Surface Finish | Precision Ground & Lapped |
| Hardness | 58-62 HRC |
| Size Range | 10 Mm To 250 Mm (or As Per Drawing) |
